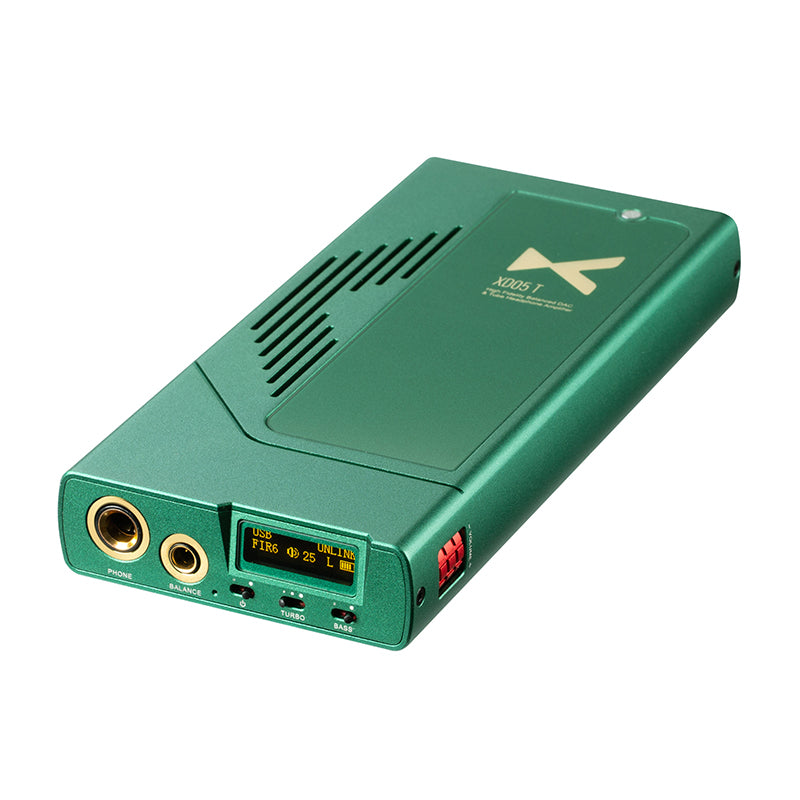

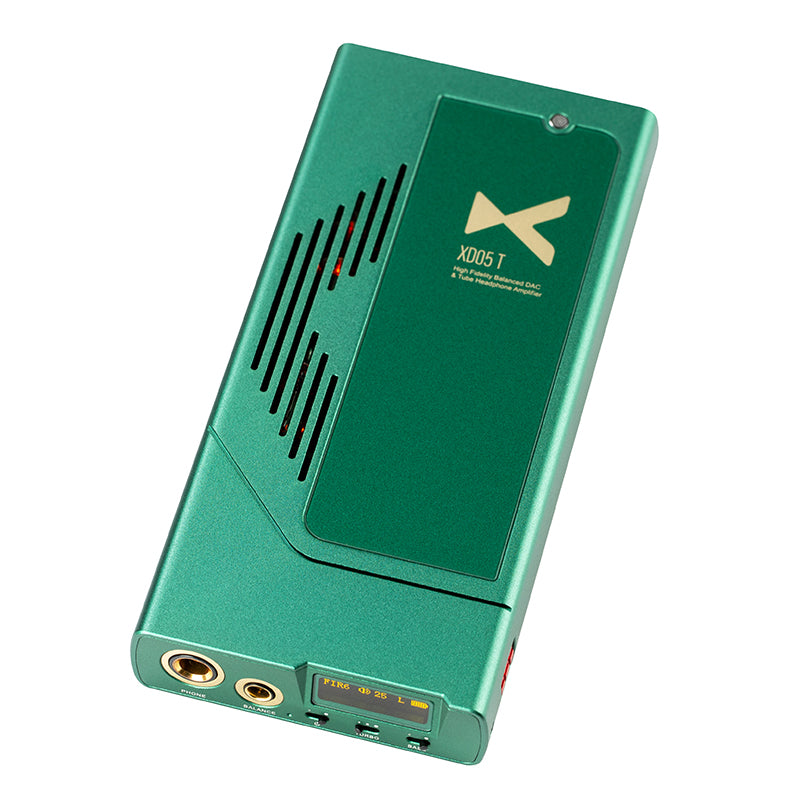

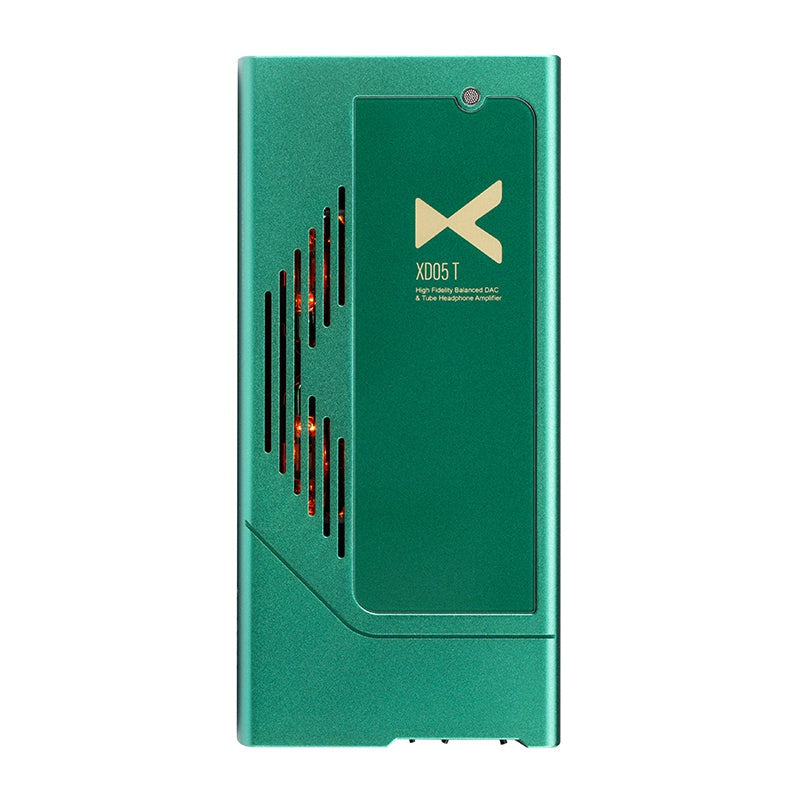

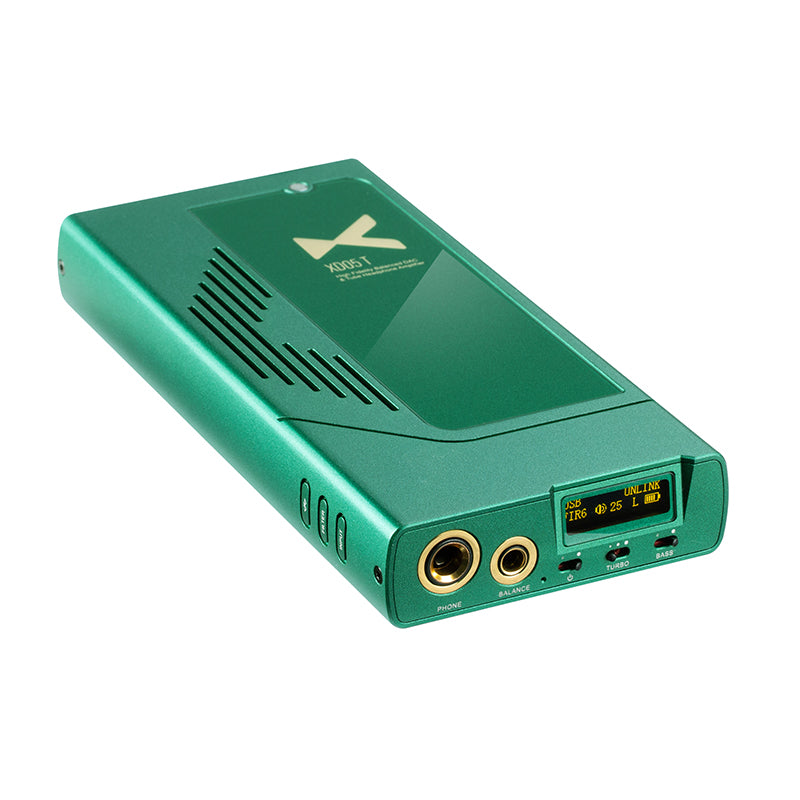

xDuoo XD05T Portable DAC/Amp

$549

Request A Price Match




Portable. Tube. DAC/Amp.

Experience the rich, analog sound of vintage tube amplification wherever life takes you with the xDuoo XD05T Portable DAC/Amp. Ideal for audiophiles who refuse to compromise on sound quality, this portable device lets you enjoy the warmth of genuine 1960s vacuum tubes on the go. Whether you're commuting, traveling, or simply unwinding at a café, the XD05T brings your music to life with its hybrid circuit design and support for today's high-resolution audio formats.

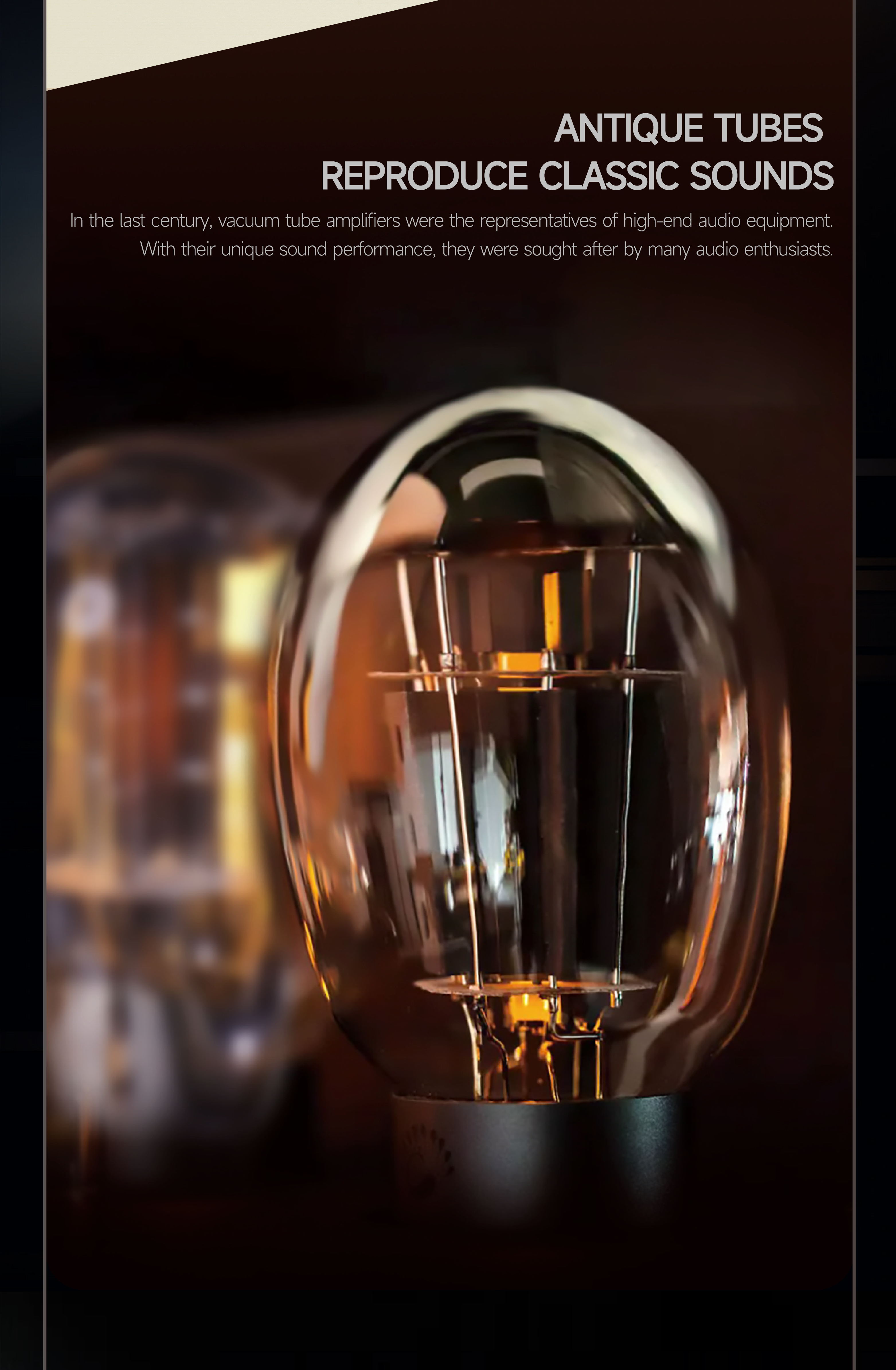

This is your grandfather's portable

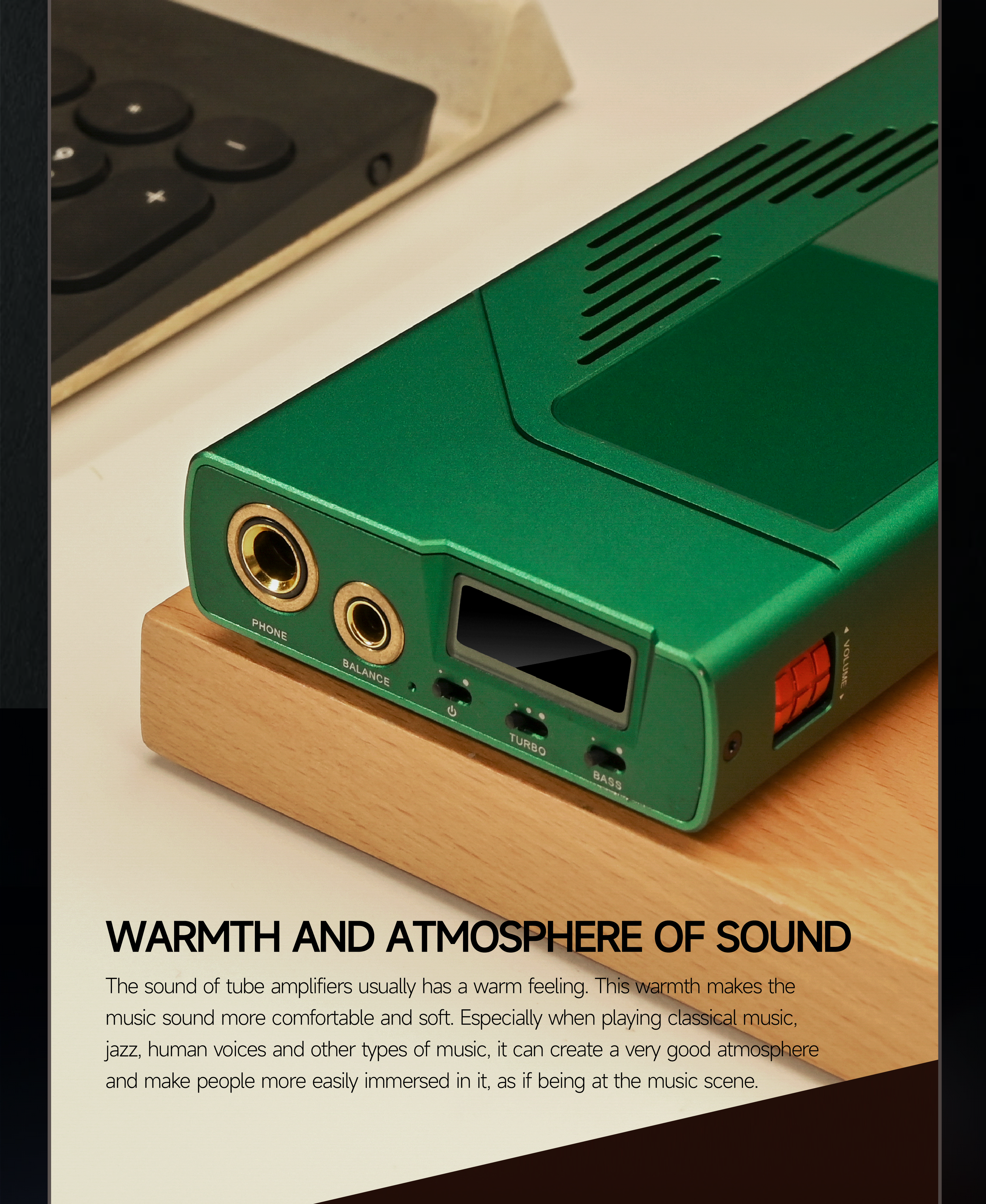

Experience music the way it was meant to be heard—with the gentle warmth and emotion that only vacuum tubes can provide. The XD05T uses carefully selected miniature tubes from the 1960s that  generate even-order harmonics that make your audio come to life.

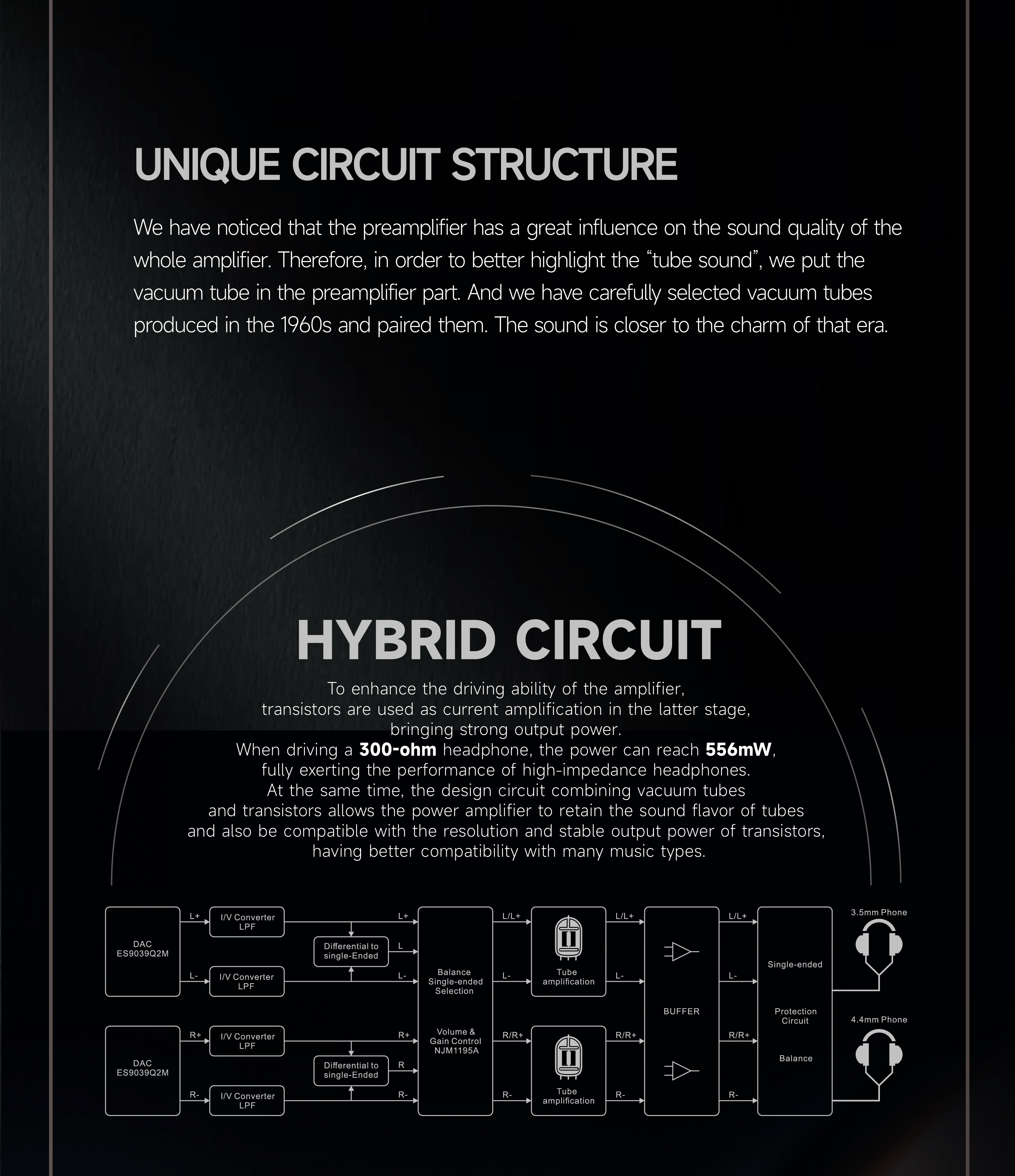

Hybrid circuitry for power and precision

Combining the best of both worlds, the XD05T's hybrid circuit merges the rich tonality of tubes with the robust output of transistors. This design ensures strong driving power—up to 556mW at 300Ω—so you can enjoy your high-impedance headphones without compromise.

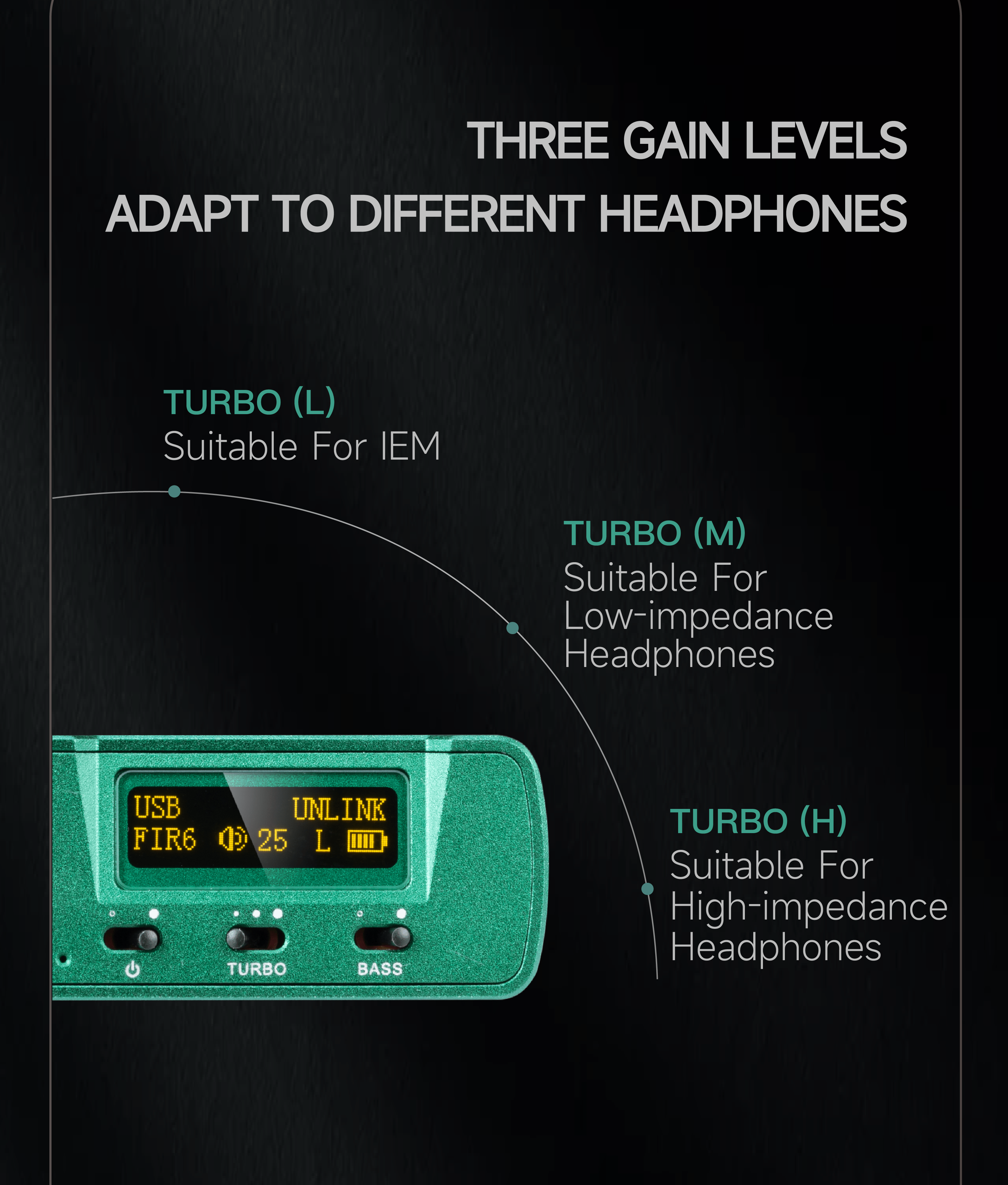

Adjustable gain paves the way for your entire collection

Whether you're using sensitive in-ear monitors or demanding over-ear headphones, the XD05T has you covered with three gain settings. Easily adapt the output to match your headphones and enjoy optimal sound quality.

Boost the bass when you need it

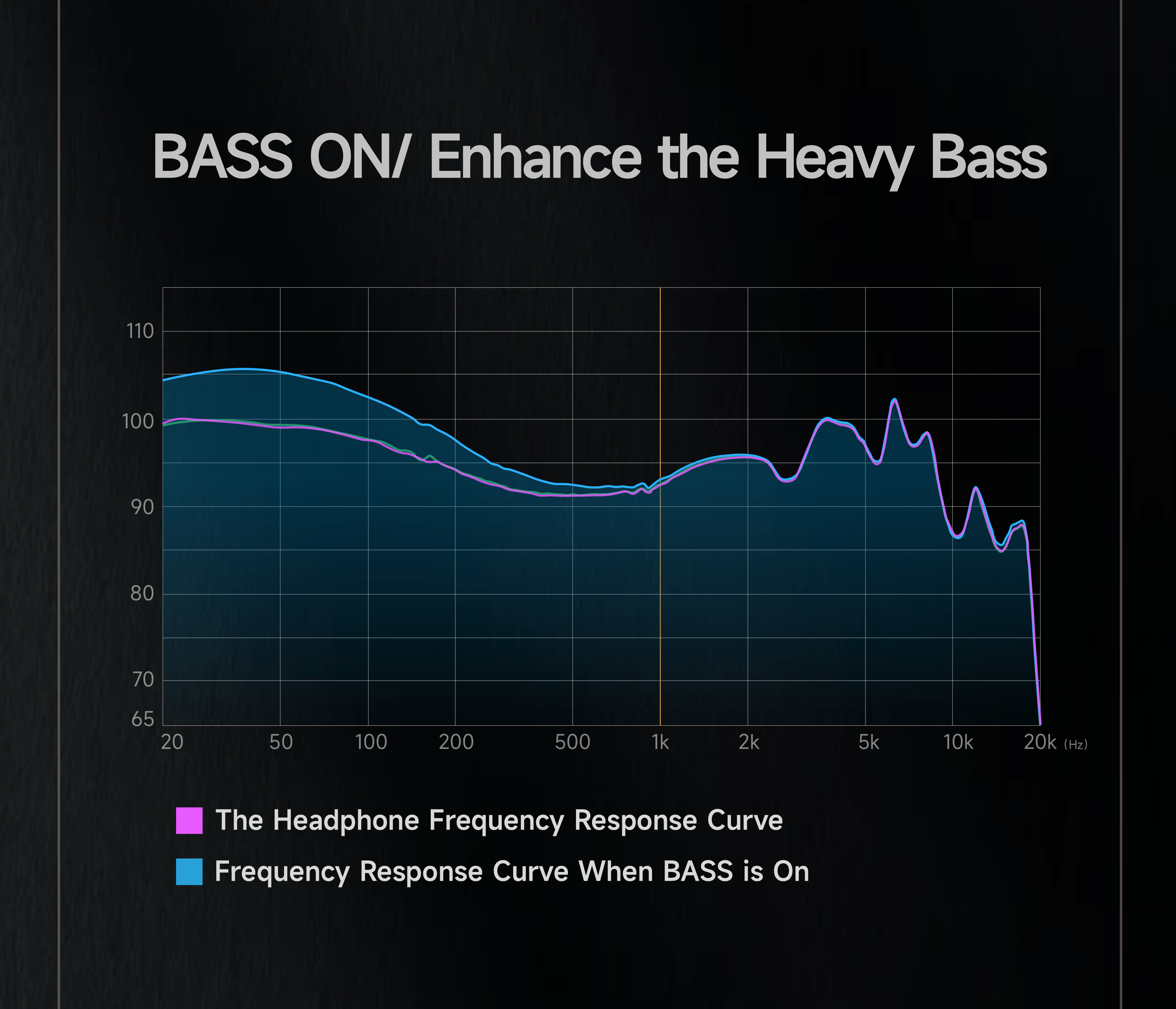

Need a little extra low-end punch? Engage the “Bass On” feature to enhance the heavy bass frequencies, adding depth and impact to your favorite tracks without overwhelming the mix.

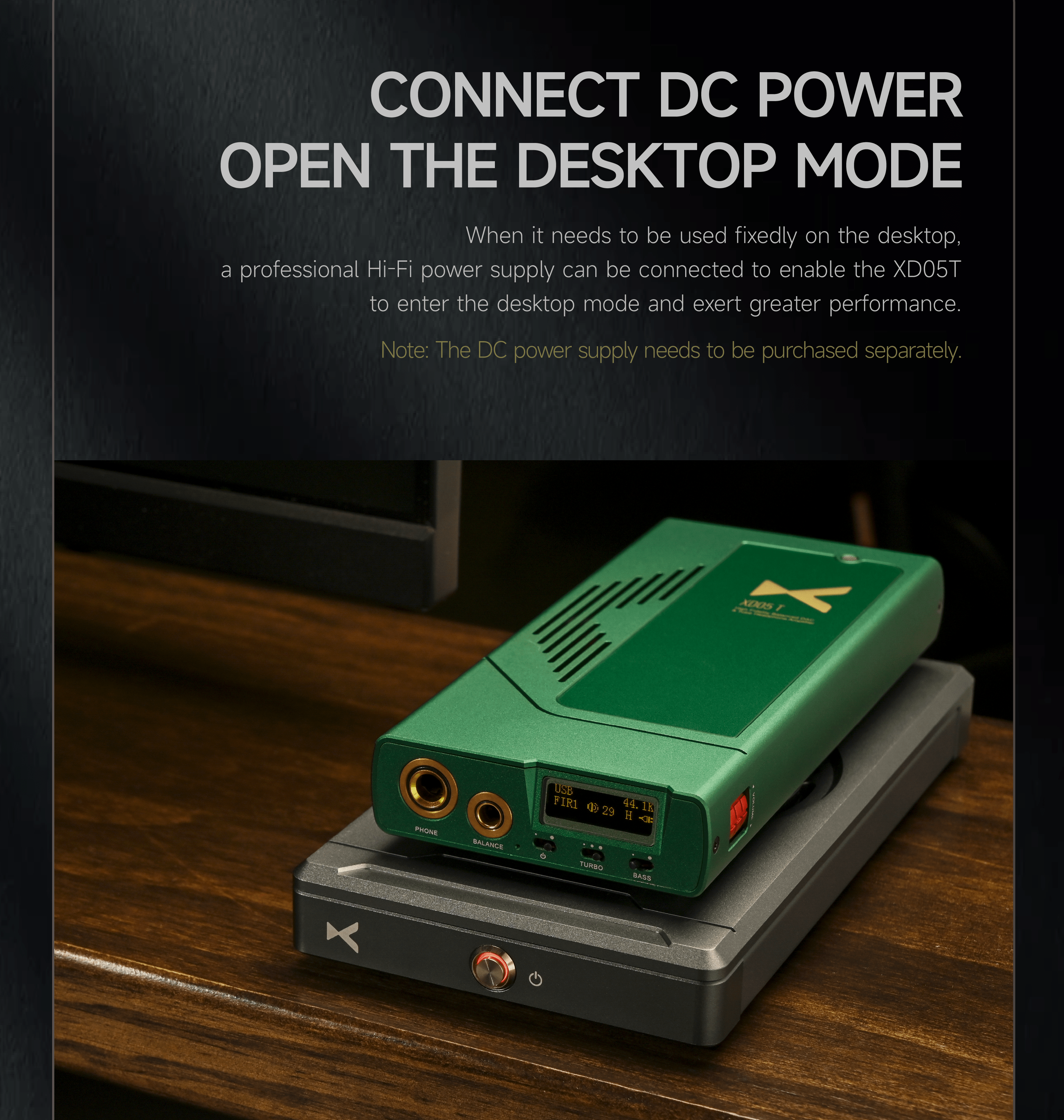

Portable design with desktop capability

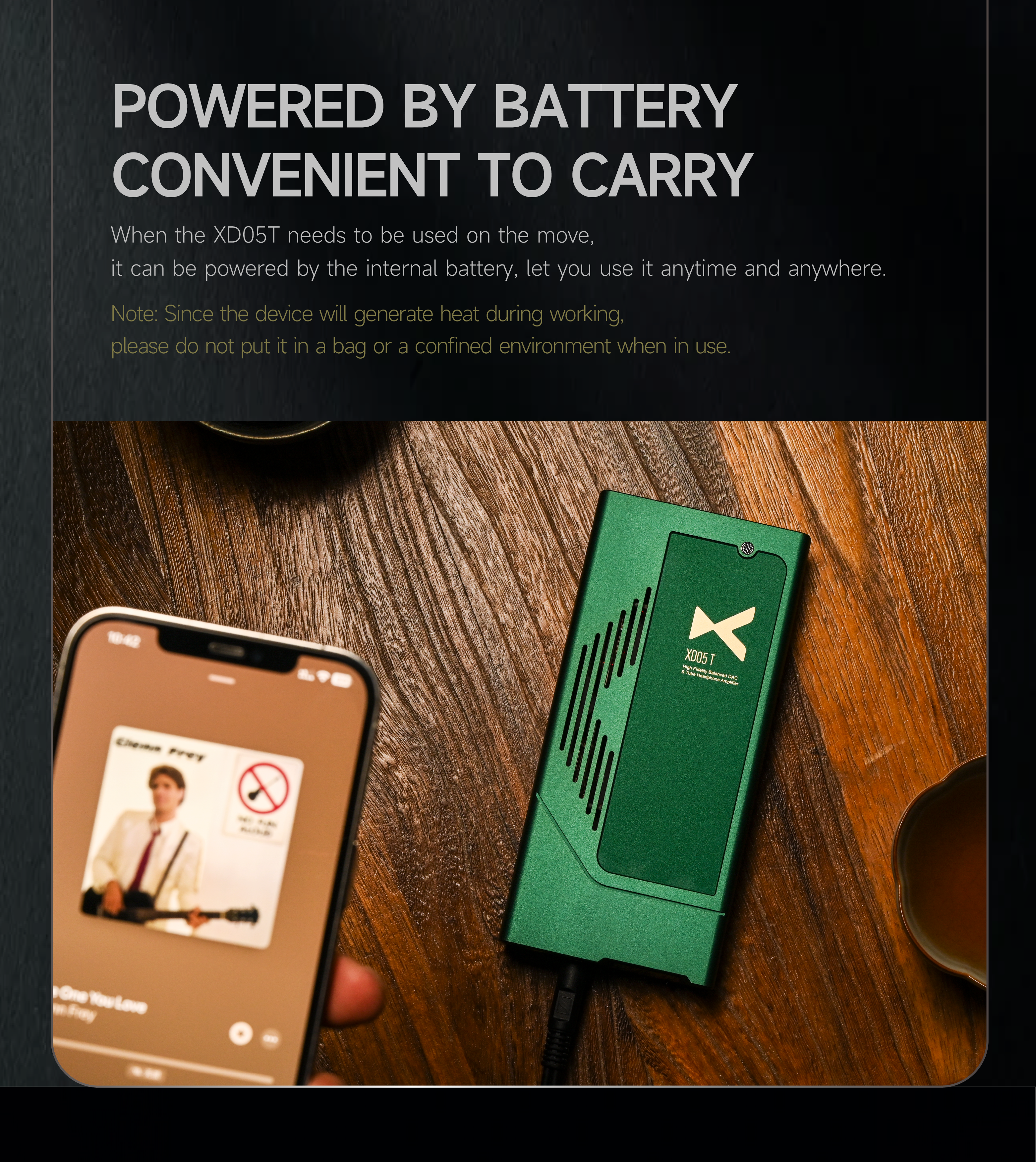

Take your music anywhere with the XD05T's internal battery power, or connect it to a DC power supply for enhanced performance in desktop mode.

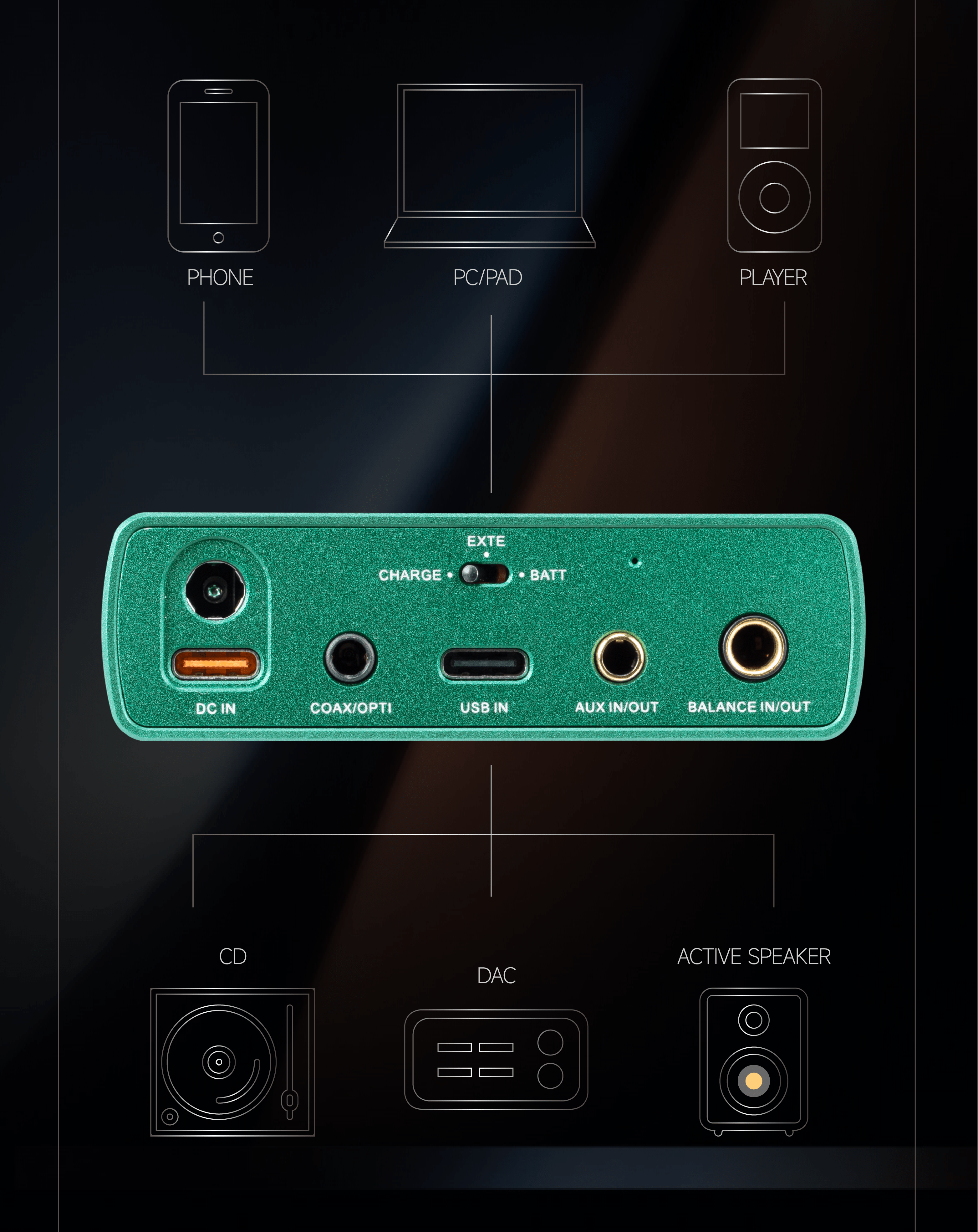

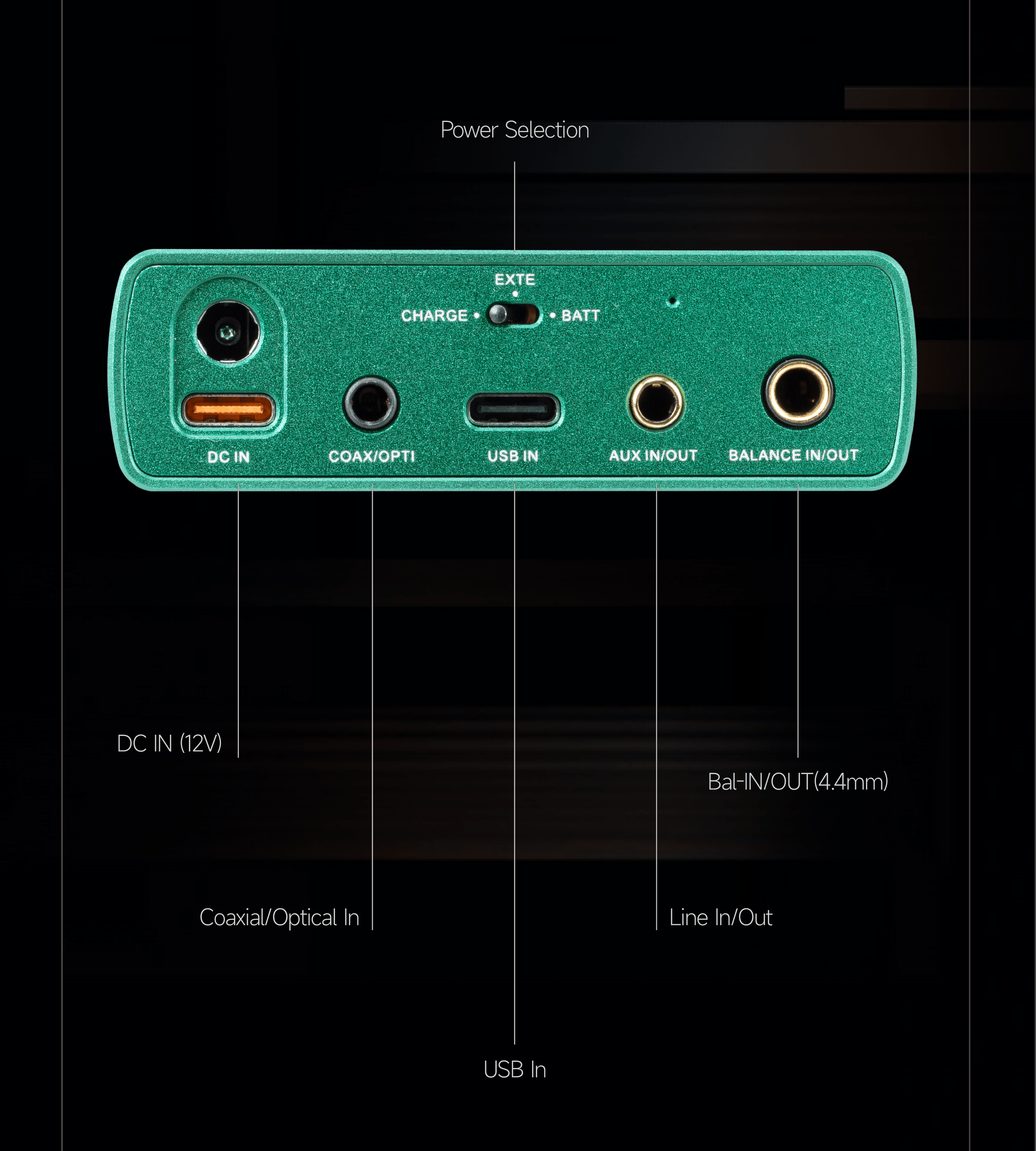

Versatile connectivity options

With multiple input and output interfaces—USB, Bluetooth 5.1, AUX, and balanced connections—the XD05T seamlessly integrates with your phone, PC, tablet, or audio player. Eight usage modes ensure compatibility with a wide range of devices.

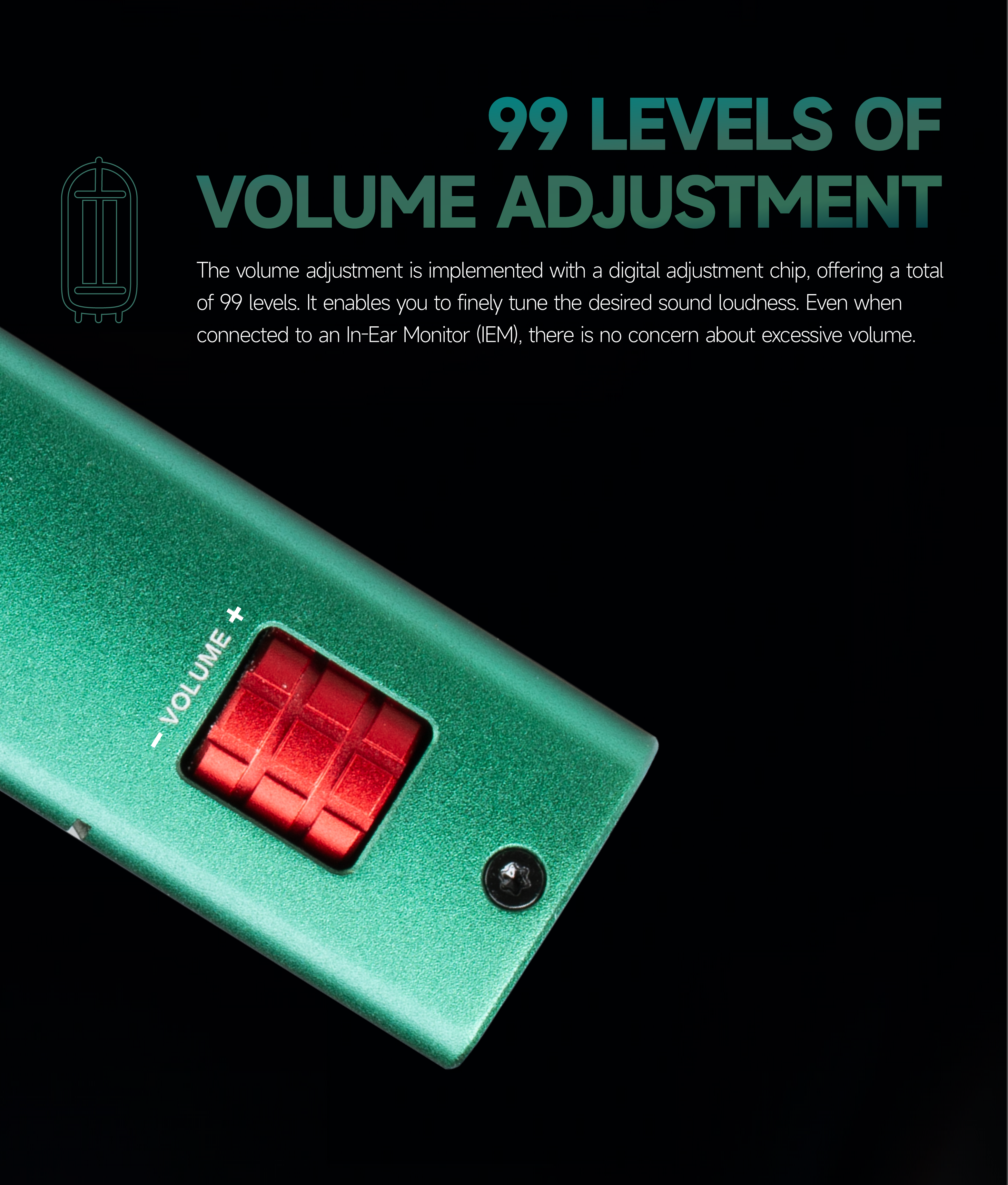

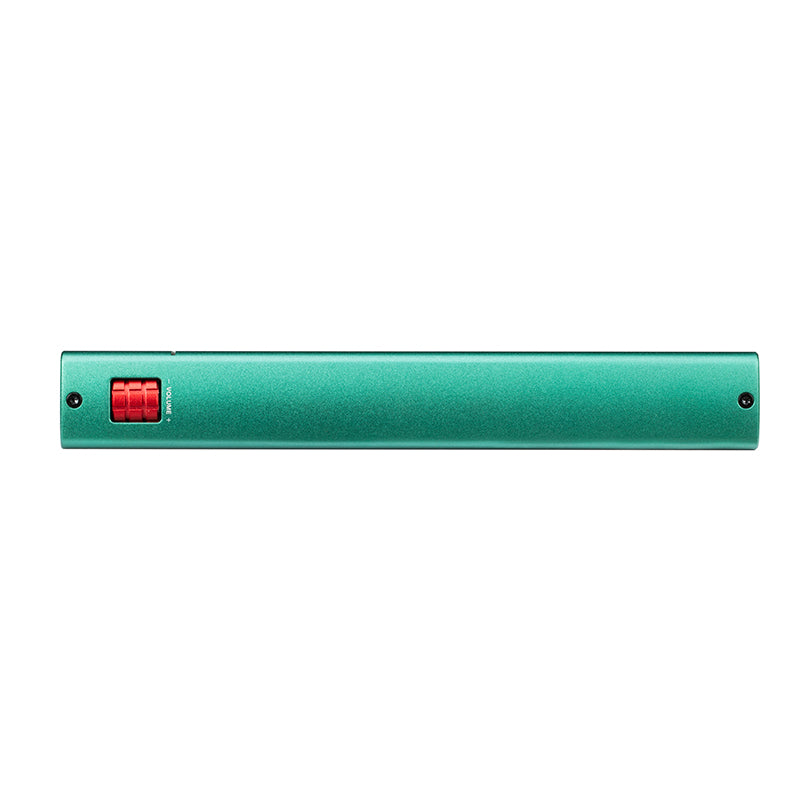

Precise volume control

Fine-tune your listening levels with 99 steps of volume adjustment. The digital volume chip allows for precise control, so you can set the perfect loudness without worrying about sudden jumps in volume—even with sensitive IEMs.

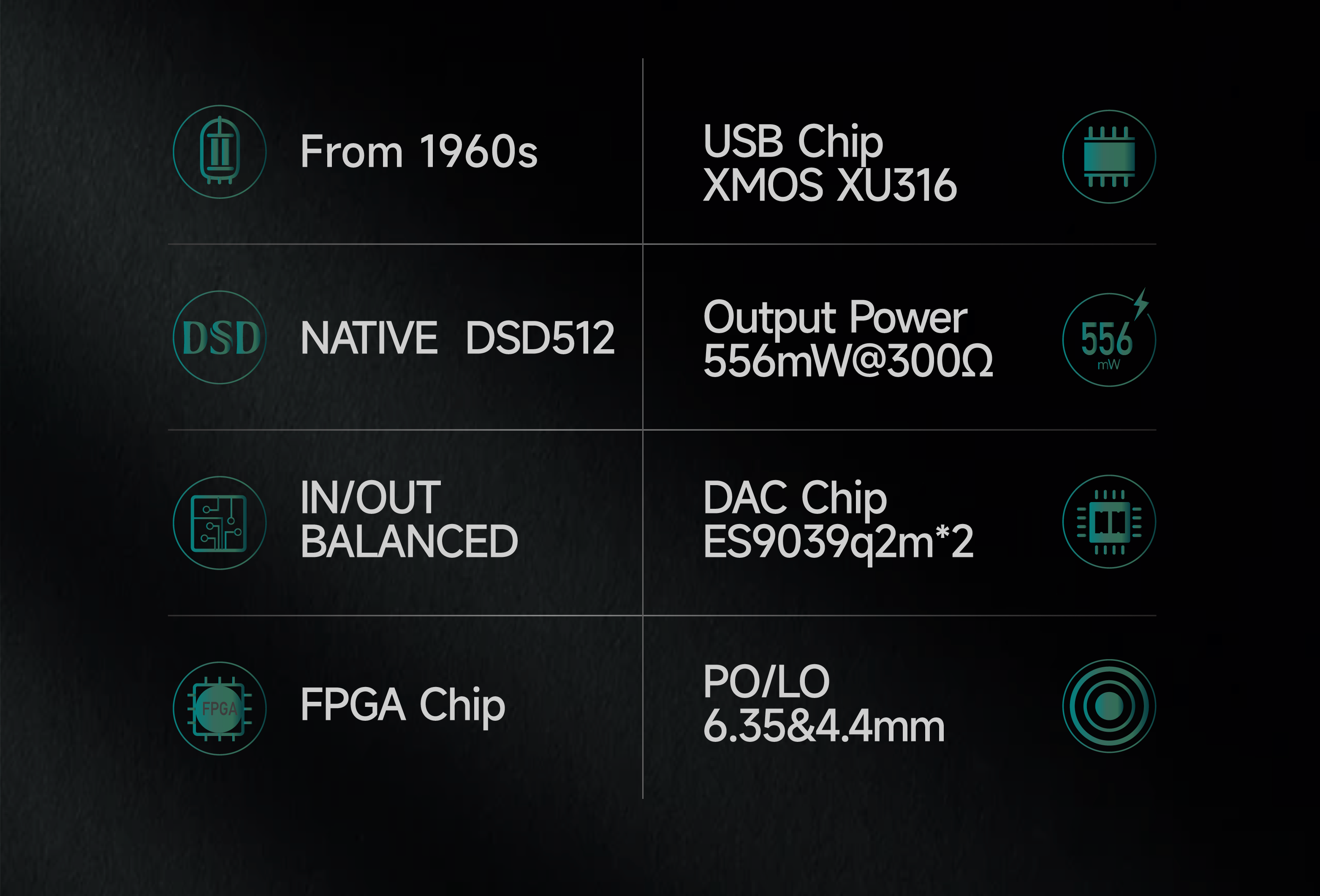

Product highlights

  • Genuine 1960s vacuum tubes for warm, analog sound

  • Hybrid tube and transistor circuitry for powerful output

  • High output power: up to 1,500mW at 32Ω (balanced)

  • Three gain settings for compatibility with various headphones

  • Bass enhancement feature for added low-frequency impact

  • Portable design with optional desktop mode via DC power

  • Multiple connectivity options: USB, Bluetooth 5.1, AUX, SPDIF

  • Supports high-resolution audio formats up to PCM 32-bit/768kHz, DSD512, MQA 8X

  • 99-level digital volume control for precise adjustments

  • Balanced and unbalanced outputs with low THD+N and high SNR

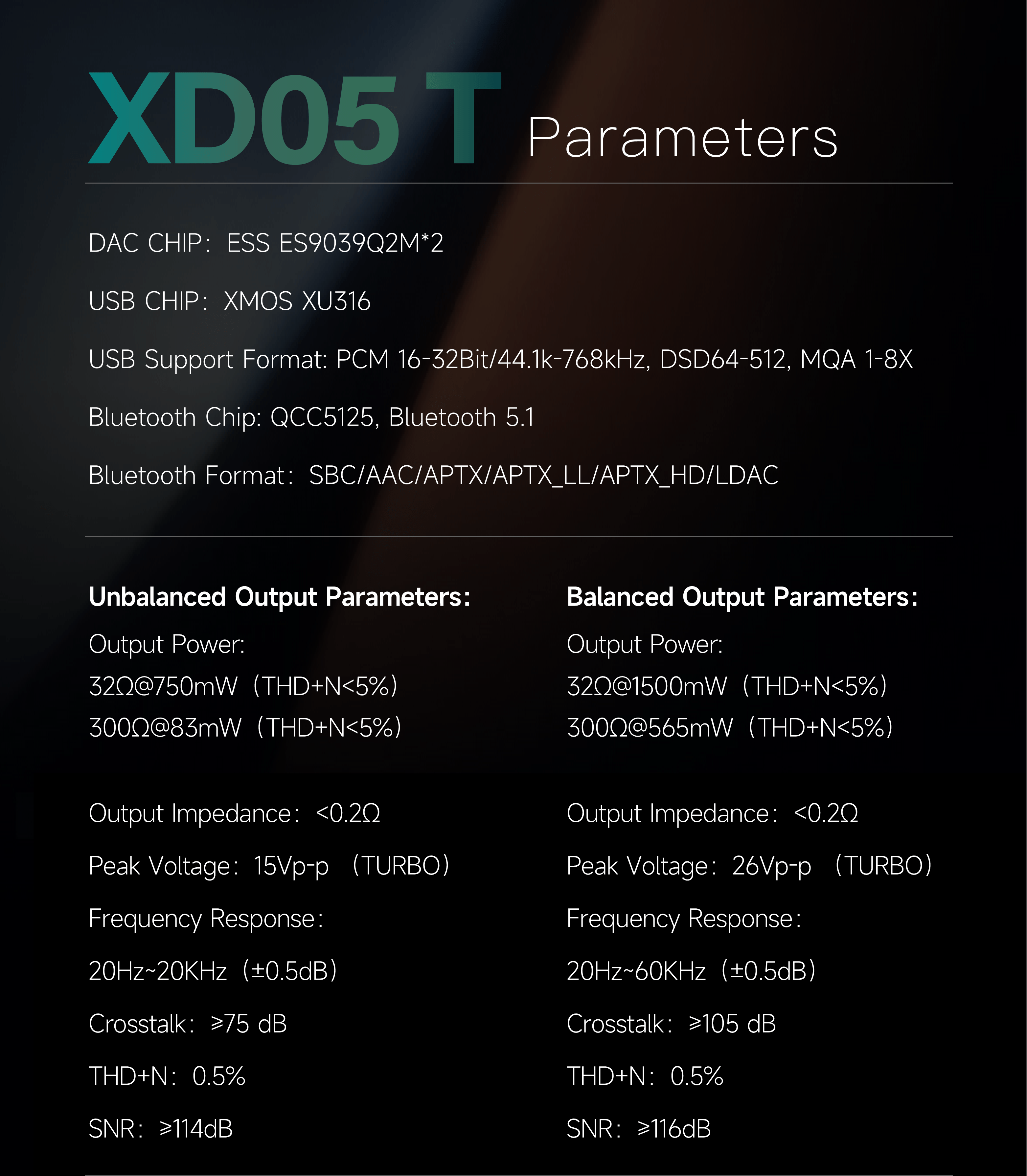

Specs

  • DAC CHIP: ESS ES9039Q2M*2

  • USB CHIP: XMOS XU316

  • USB Support Format: PCM 16-32Bit/44.1k-768kHz, DSD64-512, MQA 1-8X

  • Bluetooth Chip: QCC5125, Bluetooth 5.1

  • Bluetooth Format: SBC/AAC/APTX/APTX_LL/APTX_HD/LDAC

Unbalanced Output Parameters:

  • Output Power:

    • 32Ω@750mW (THD+N<5%)

    • 300Ω@83mW (THD+N<5%)

  • Output Impedance: <0.2Ω

  • Peak Voltage: 15Vp-p (TURBO)

  • Frequency Response: 20Hz-20KHz (±0.5dB)

  • Crosstalk: ≥75 dB

  • THD+N: 0.5%

  • SNR: ≥114dB

Balanced Output Parameters:

  • Output Power:

    • 32Ω@1500mW (THD+N<5%)

    • 300Ω@565mW (THD+N<5%)

  • Output Impedance: <0.2Ω

  • Peak Voltage: 26Vp-p (TURBO)

  • Frequency Response: 20Hz-60KHz (±0.5dB)

  • Crosstalk: ≥105 dB

  • THD+N: 0.5%

  • SNR: ≥116dB

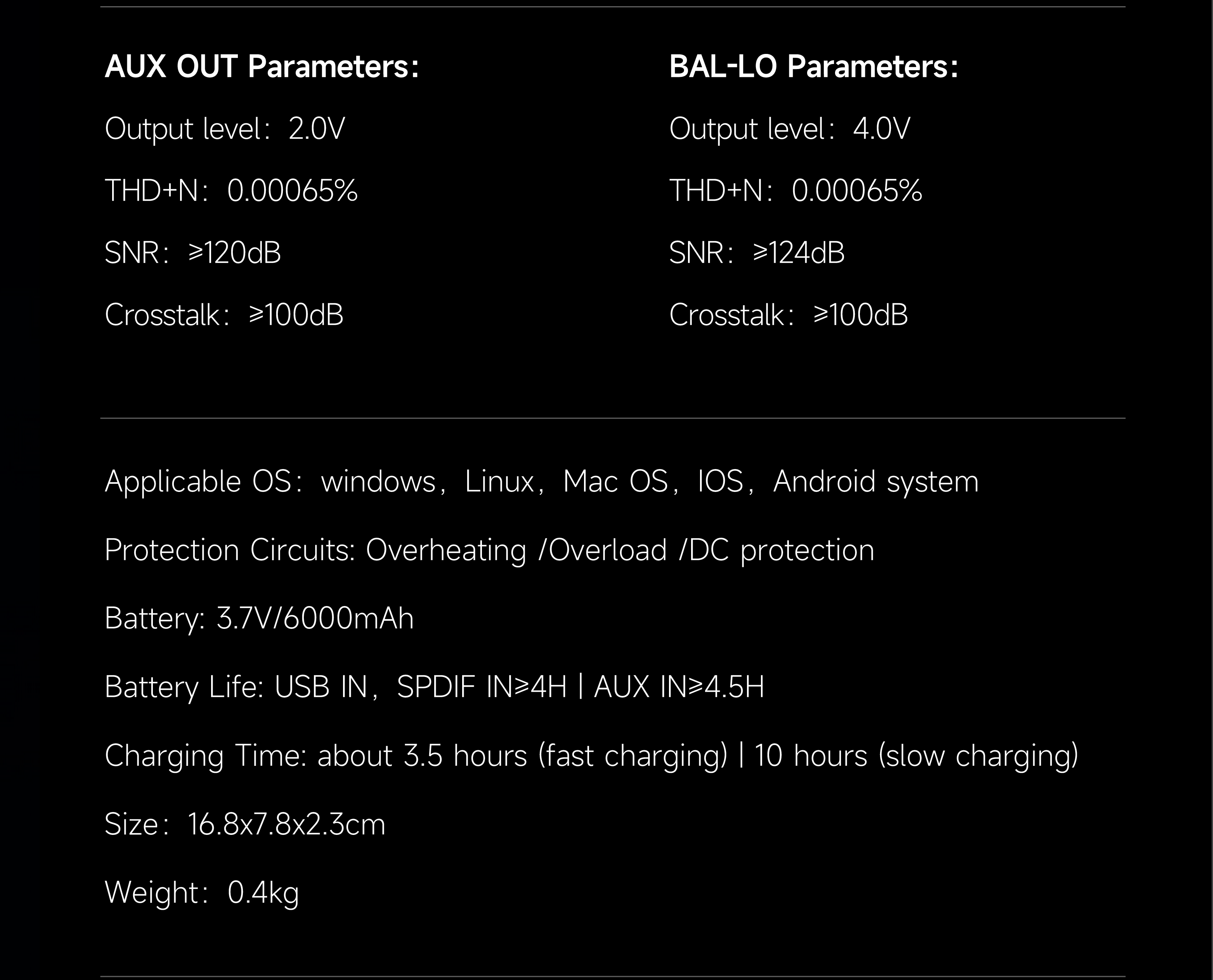

AUX OUT Parameters:

  • Output level: 2.0V

  • THD+N: 0.00065%

  • SNR: ≥120dB

  • Crosstalk: ≥100dB

BAL-LO Parameters:

  • Output level: 4.0V

  • THD+N: 0.00065%

  • SNR: ≥124dB

  • Crosstalk: ≥100dB

Other Specifications:

  • Applicable OS: Windows, Linux, Mac OS, iOS, Android

  • Protection Circuits: Overheating / Overload / DC protection

  • Battery: 3.7V / 6000mAh

  • Battery Life:

    • USB IN, SPDIF IN ≥ 4H

    • AUX IN ≥ 4.5H

  • Charging Time: 3.5 hours (fast charging) | 10 hours (slow charging)

  • Size: 16.8 x 7.8 x 2.3 cm

  • Weight: 0.4kg

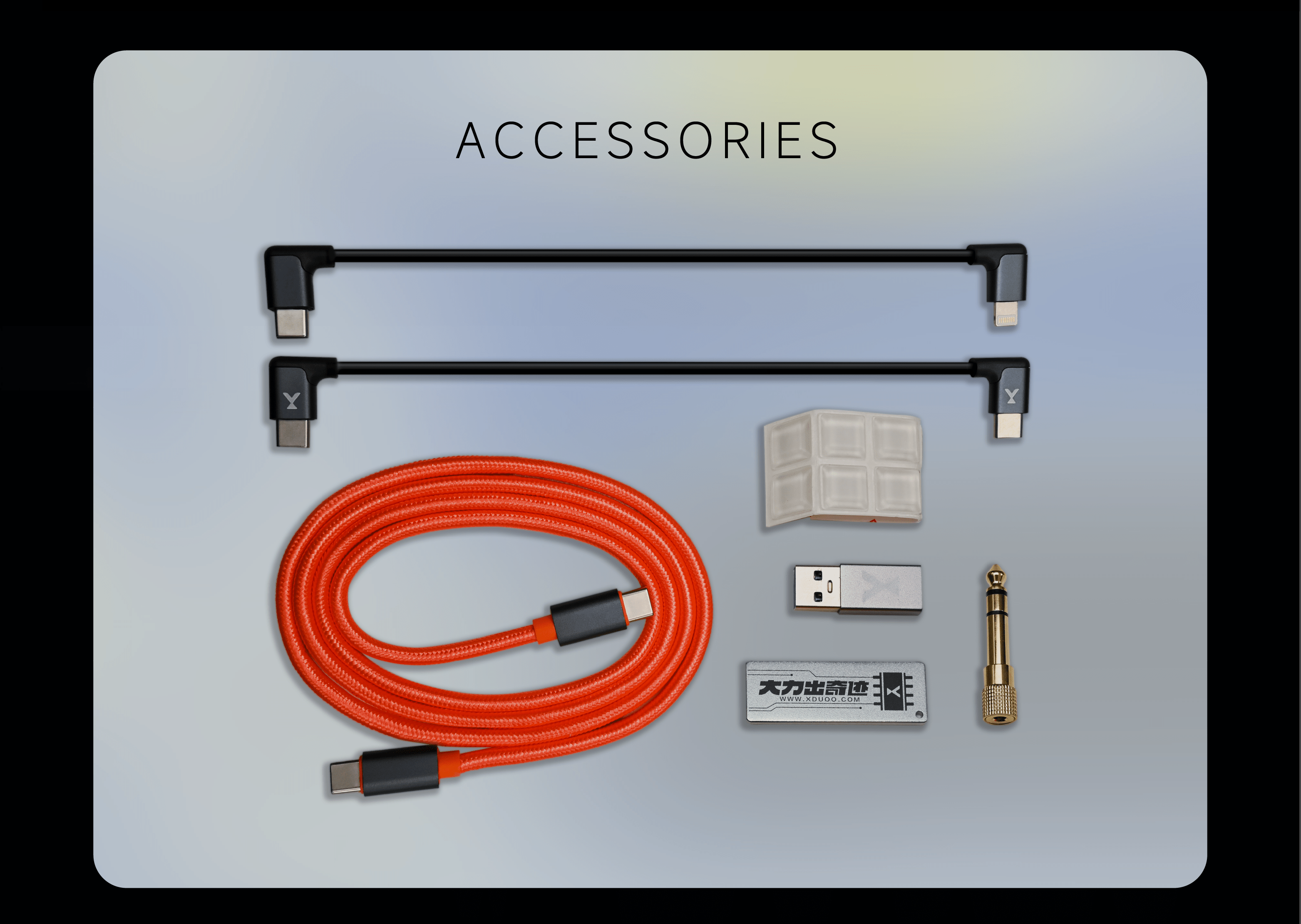

What’s included

  • USB-C to lightning dongle

  • USB-C to USB-C dongle

  • USB-C cable

  • USB-A adapter

  • 3.5mm adapter
