iFi ZEN Signature Set HFM
Packed with sonic goodness
ZEN DAC Signature V2
This ZEN DAC Signature V2 is the upgraded version of iFi’s original ZEN DAC Signature – a pure DAC that benefits from true-differential balanced circuit design. It has upgraded circuit components and short, direct signal paths for optimal signal purity.
It delivers bit-perfect PCM (up to 32-bit/384kHz), native DSD (up to DSD256) and DXD.
The use of the 16-core XMOS chip, rather than the original 8-core, means it is now a full MQA decoder rather than a renderer.
It offers a pair of RCA sockets for single-ended connection to an amp, plus a Balanced 4.4mm output.
The full benefit of the ZEN DAC Signature V2’s balanced circuit design comes to the fore when it is connected to an amp or active speakers equipped with a balanced input. This can either be a 4.4mm Balanced input or stereo XLR inputs via a 4.4mm-to-XLR cable.
It can switch between ‘variable’ and ‘fixed’ outputs.
ZEN CAN Signature HFM
The ZEN CAN Signature HFM has a specialized, finely tuned EQ curve. Its custom ActivEQ setting combines active and passive components to create a specific EQ curve to suit HIFIMAN planar headphones. ActivHQ can be switched off to make the most of all headphones and in-ear monitors.
It features PowerMatch – four gain in six dB steps – 0dB, 6dB, 12dB and 18db.
The ZEN CAN Signature HFM boasts symmetrical, dual-mono balanced circuitry. It delivers 1600mW (7.2V) into 32 ohms from the single-ended output, with 15V+ available to loads of 600 ohms or more through the balanced output.
It houses stereo RCA and 3.5mm single-ended inputs, plus a 4.4mm Balanced input. It has a 6.3mm output for headphones that have a standard single-ended connector and a 4.4mm Balanced output for headphones offering a balanced connection.

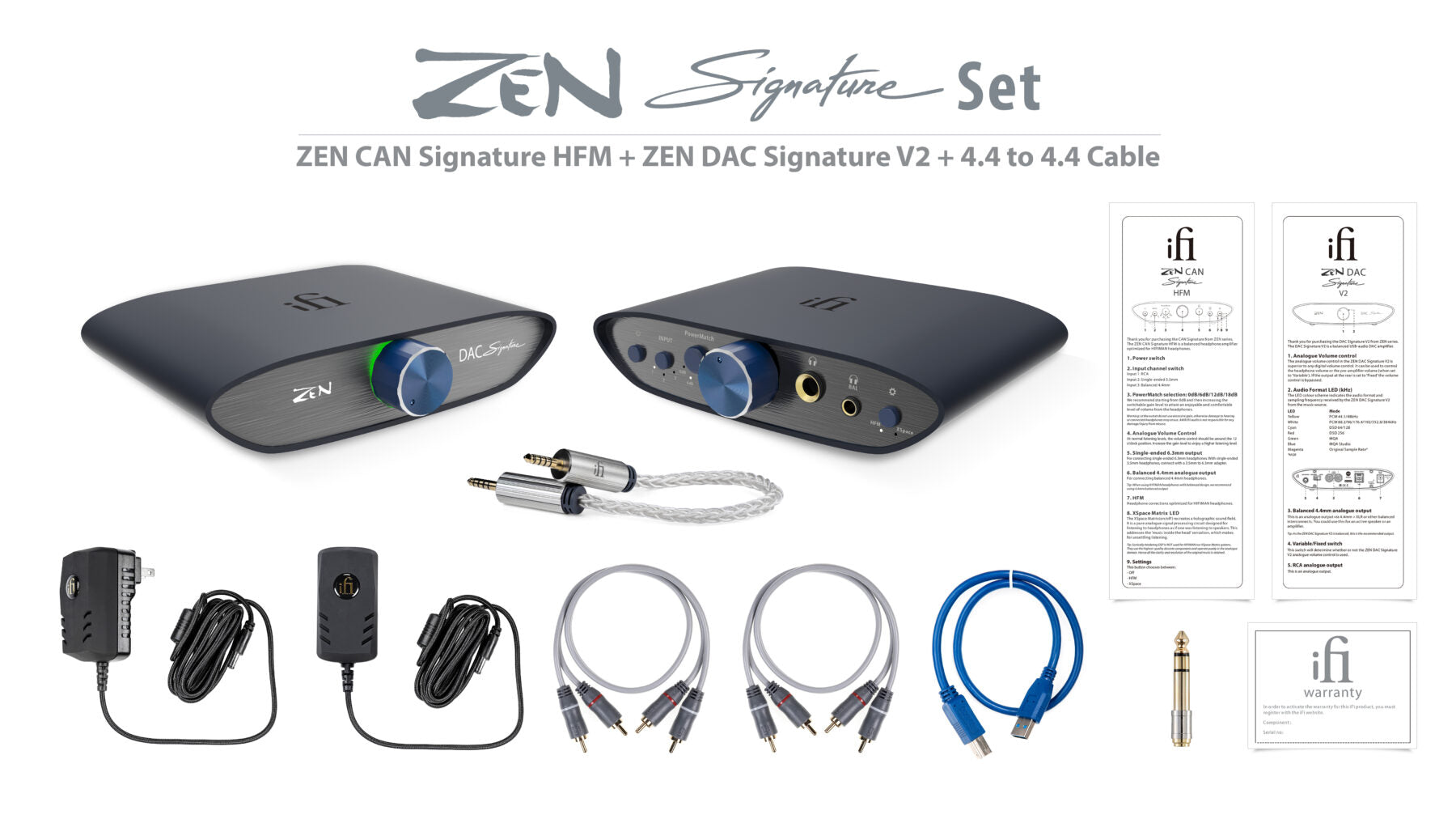

- Zen CAN SIgnature HFM
- Zen DAC Signature V2
- 4.4 to 4.4 cable
- Wall wart x2
- RCA cable x2
- USB cable
- 3.5mm to 6.35mm adapter
- User manual x2
- Warranty card
